EvoDrive+
Automatic Door for Public Toilets and for People with Reduced Mobility (PRM)
-
More hygienic, thanks to a touch-less experience
-
Prevents the flow of unpleasant odors, the door is always closed
-
Increased accessibility, fully automatic operation
-
Quiet and smooth motion
-
Magnetic linear motor technology
-

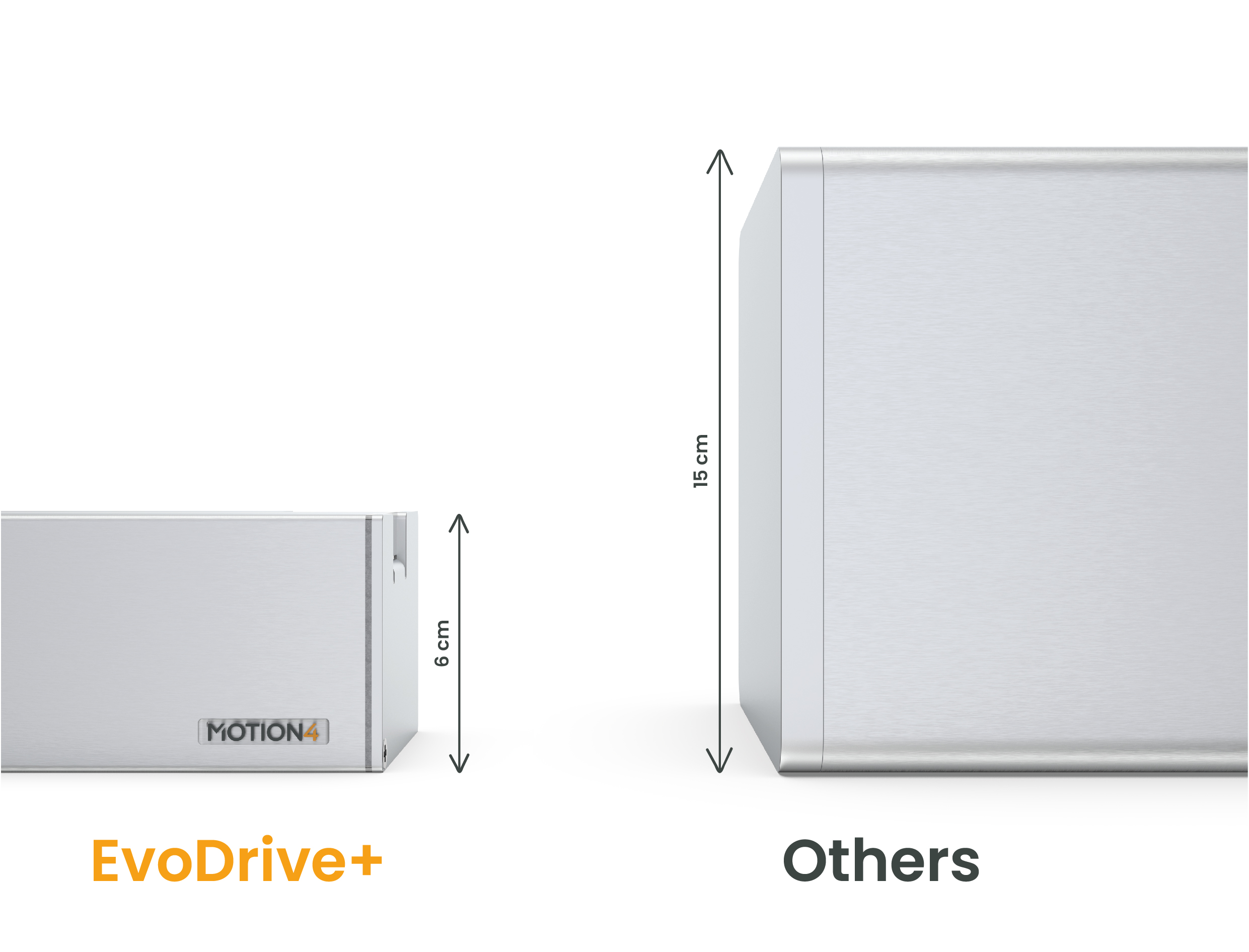

Ultra-compact header frame: 60 mm high x 70 mm deep
-
Door leaf up to 80 Kg
-
For private use (home) or public (airports, restaurants, shopping malls…)
Surely you have found yourself more than once in the same situation: once you have washed and dried your hands, the doubt arises as you leave the toilet… How do I open the door without touching the handle? With EvoDrive+, the door will open simply by waving your hand close to the sensor, and then close after you walk through. A touch-less and hygienic experience
Eases Accessibility
The automatic sliding door, in addition to saving space, is the optimal and most comfortable solution for any user, especially for people with reduced mobility (PRM). With a simple activation, the door will open, close and lock the door. An optional lighting device will indicate to other users outside whether the bathroom is occupied (red light) or vacant (green light).
Featured Project
Dubai International Airport
Other Recommended Applications
Restaurants
SOCO Restaurant, Madrid, Spain
Hotels
ABBA Hotel , San Sebastian, Spain
Shopping Malls
BONAIRE Shopping Mall, Valencia, Spain
EvoDrive+
With Magnetic Linear Motor Technology
Performance of an Automatic Door, Small as a Manual Door Track
Main Activation Devices

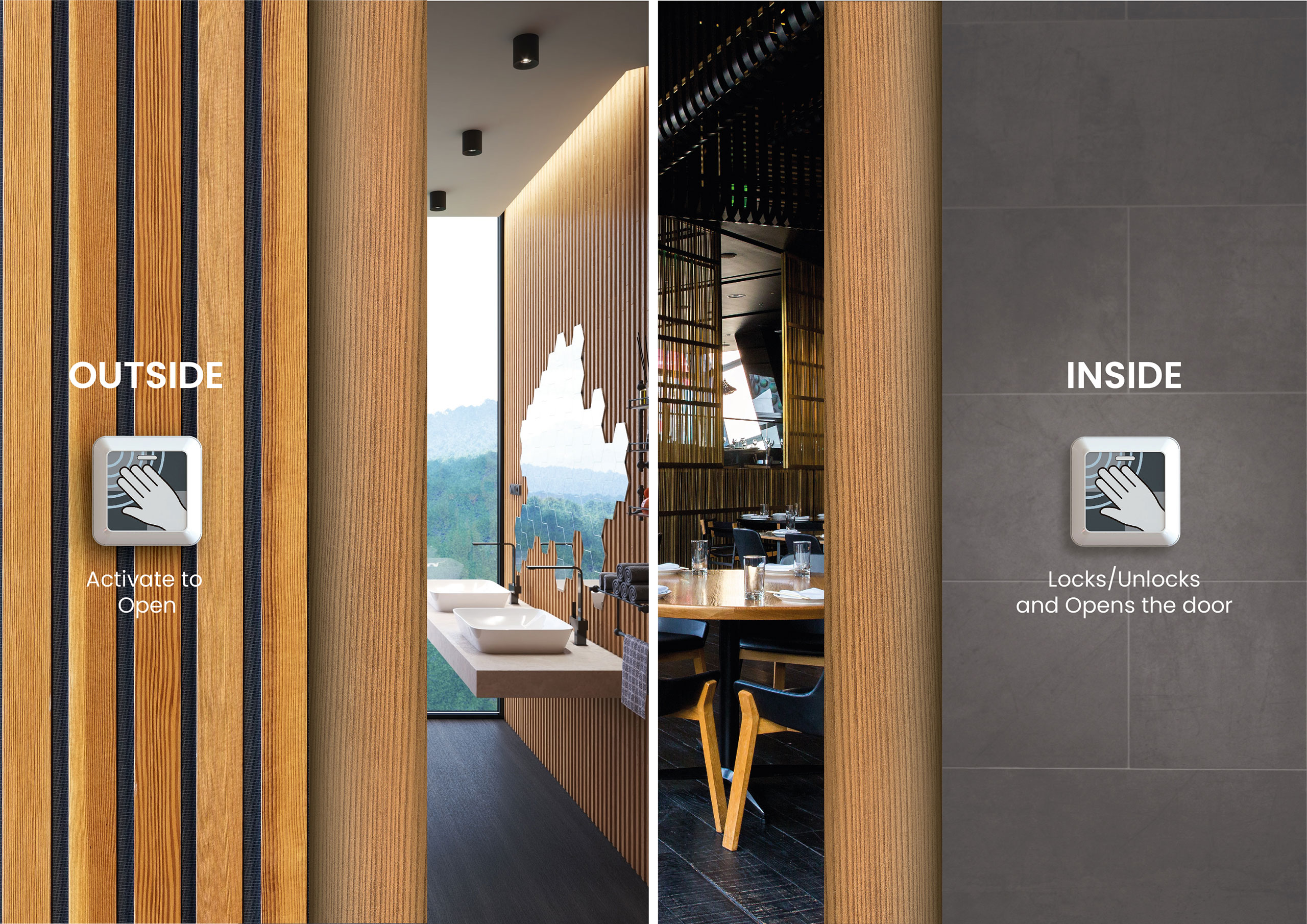

“BASIC” version
An external touch-less sensor allows the user to activate and open the door when the bathroom is vacant (green led is on), to let the user enter the toilet. Once inside, and after an adjustable hold-open time, the door closes, and the user will lock the door by waving the hand close to the interior touch-less switch. When finished, the user waves the hand in front of the same sensor to activate and open the door and allow him to exit.

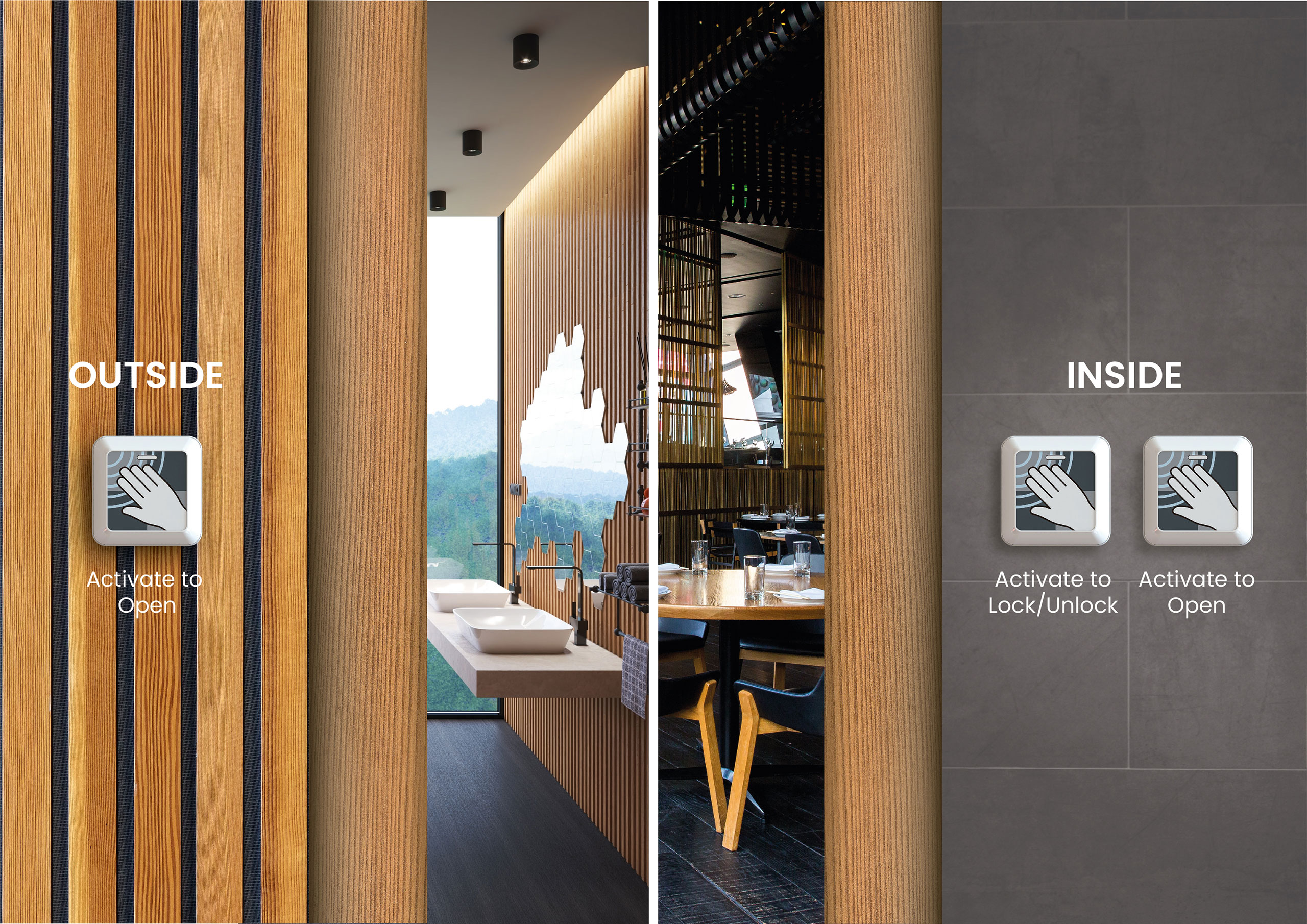

“COMFORT” version
An external touch-less sensor allows the user to activate and open the door when the bathroom is vacant (green led light is on), to let the user enter the toilet. Once inside, and after an adjustable hold-open time, the door closes, and the user will lock the door by waving the hand close to the lock/unlock interior touch-less switch. To open, the user waves the hand in front of the same sensor to unlock the door, then wave the hand in front of the second sensor to open the door and allow him to exit.
Optional elements

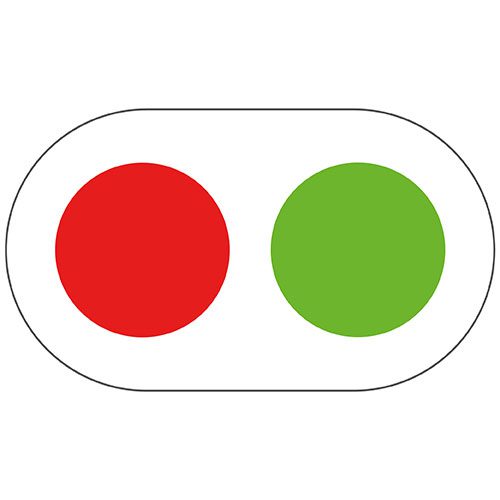

Exterior LED light
Indicates if the toilet is vacant (green light on) or occupied (red light on)
Exterior Key Switch
Allows the door to be unlocked from the outside by security or maintenance personnel in case of emergency
